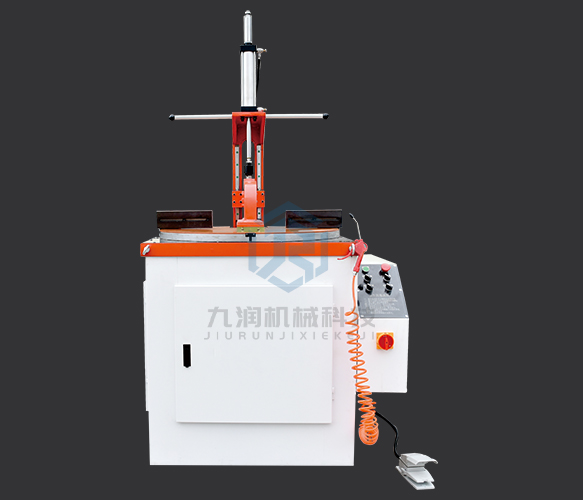

JR-550Q单头锯转角机
隐藏式锯片，可以安全的上下工作;自动喷油，切面无毛刺，锯片更耐用;一次可单支或多支锯切，少量或大批量生产告适宜;解决了传统机台铝屑飞溅的弊病，改善工作环境;夹紧切割的程序都由电气控制;工作时间可调，夹紧压力可调;切薄壁材料不变形速度快，这样大大提高了工作效率
在线询价
产品详情
机型Model | JR-550Q | JR-650Q |
| 主电机功率Cutting motor power | 4KW | 5.5KW |
| 锯片规格Saw blade specifications | φ355-φ505mm 内孔lnner hole25.4mm | φ355-φ650mm 内孔lnner hole25.4mm |
| 主轴转速Spindle speed | 0-2800rpm | 0-2200rpm |
| 切割角度Cutting angle | 35°-145°以内任意角角度公差0-0.15°Anyangle within35°-145°withatolerance of0-0.15° | |
| 最大锯切高度Maximum sawing height | 175mm | 225mm |
| 最大锯切宽度Maximum sawing width | 350mm | 400mm |
| 电压Voltage | 国内380V50HZ国外依客户所需定制Domestic380V50HZ,customized according to customer needs overseas | |
| 切割精度Cutting accuracy | ±0.1mm | 140*140mm |
| 所需空压Required air pressure | 5-8kg/cm? | 5-8kg/cm? |
| 机器尺寸Machine size | 1200*1000*2000mm | 1600*1400*2100mm |
| 重量Weight | 0.45T | 0.8T |
| 适用材料Applicable materials | 适合锯切新能源汽车零部件、散热片、铝材、铜材、pv、塑钢材料、电木板、亚克力塑胶、铁氣龙、蜂巢板、木板等非铁金属材料Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVc, plastic steel, bakelite, acrylic plastic, PTFEhoneycomb board, wood board and other non-ferrous metal materials | |
